Hex Socket Set Screws with Flat Point are common fasteners widely used in mechanical manufacturing, electronic equipment, automotive industries, and more. Their unique design and functionality make them excel in applications requiring high precision and reliability. This article will provide a detailed introduction to the usage methods and common application scenarios of Hex Socket Set Screws with Flat Point.

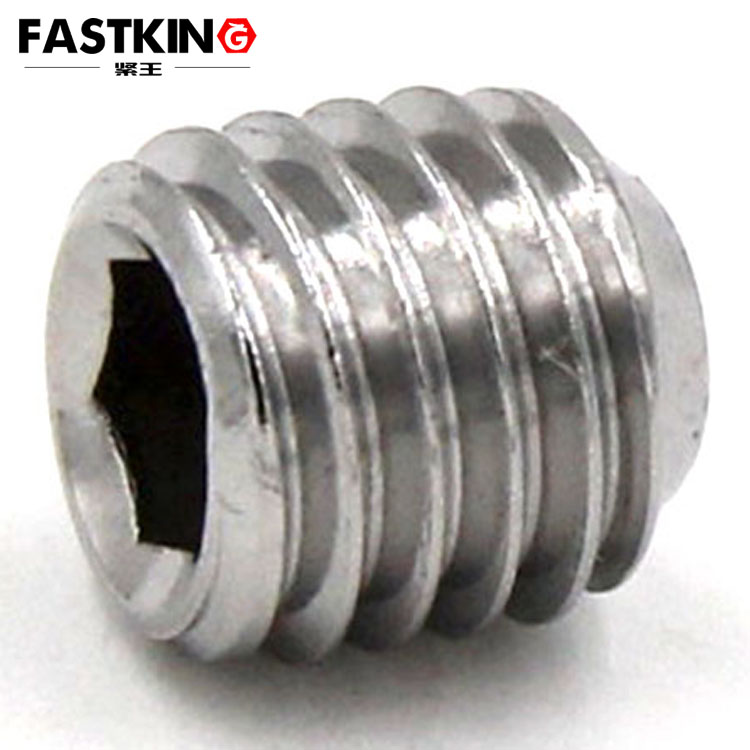

Structure and Features of Hex Socket Set Screws with Flat Point
Hex Socket Set Screws with Flat Point mainly consist of the following parts:
1. Head: Designed with a hex socket, allowing easy tightening and loosening using a hex key.
2. Threaded Part: Standard thread design ensures the screw can be securely fixed to the workpiece.
3. Flat Point: The flat point design prevents damage to the workpiece surface during tightening, making it suitable for applications where surface protection is required.
Features of Hex Socket Set Screws with Flat Point include:
High Precision: The hex socket design allows the screw to withstand high torque, ensuring precise and reliable fastening.
Ease of Operation: Using a hex key for operation makes it convenient and quick.
Workpiece Protection: The flat point design avoids damage to the workpiece surface, making it suitable for precision instruments and equipment installation.
Usage Methods of Hex Socket Set Screws with Flat Point
1. Preparation
Before using Hex Socket Set Screws with Flat Point, the following preparations are necessary:
Select the Appropriate Screw: Choose the correct screw size and material based on the workpiece material and thickness.
Prepare Tools: Have the appropriately sized hex key ready.
Clean the Workpiece Surface: Ensure the workpiece surface is clean, free of oil and debris, to guarantee a secure fastening.
Installation Steps
1. Positioning: Insert the screw into the pre-drilled hole, ensuring alignment with the hole.
2. Initial Fixing: Gently tighten the screw using the hex key to initially secure it to the workpiece.
3. Adjust Position: Adjust the screw position as needed to ensure it is flush with the workpiece surface.
4. Final Tightening: Apply appropriate torque with the hex key to fully tighten the screw. Avoid over-tightening to prevent damage to the threads or workpiece.
Removal Steps
1. Loosen the Screw: Use the hex key to turn the screw counterclockwise to loosen it.
2. Remove the Screw: Gently pull out the screw to avoid damaging the workpiece surface.
3. Inspect Screw and Workpiece: Check both the screw and workpiece for any damage, and replace or repair if necessary.
Application Scenarios of Hex Socket Set Screws with Flat Point
1. Mechanical Manufacturing
In mechanical manufacturing, Hex Socket Set Screws with Flat Point are widely used for the installation and fixing of various equipment. For example, in machine tools, conveyor belts, and transmission devices, these screws are used to secure bearings, gears, shafts, and other critical components, ensuring stable operation.
2. Electronic Equipment
In electronic equipment manufacturing, Hex Socket Set Screws with Flat Point are commonly used to secure circuit boards, heat sinks, and casings. The flat point design prevents damage to circuit boards and electronic components, ensuring device reliability and safety.
3. Automotive Industry
In automotive manufacturing and maintenance, Hex Socket Set Screws with Flat Point are used to secure engine components, chassis parts, and body structures. Their high precision and reliability ensure vehicle safety and durability.
4. Precision Instruments
In precision instruments and equipment, Hex Socket Set Screws with Flat Point are used to secure optical components, sensors, robotic arms, and other critical parts. The flat point design avoids damage to precision components, ensuring high accuracy and stability.
5. Furniture Manufacturing
In furniture manufacturing, Hex Socket Set Screws with Flat Point are used to secure frames and connectors. Their ease of operation and reliability make furniture assembly and disassembly more convenient and efficient.
Precautions
1. Select the Appropriate Screw Size and Material: Choose the correct screw size and material based on the workpiece material and usage environment to ensure reliable and durable fastening.
2. Avoid Over-Tightening: Over-tightening may damage the threads or deform the workpiece, affecting the fastening effect.
3. Regular Inspection and Maintenance: Periodically check the screw's tightness and re-tighten or replace if necessary to ensure proper equipment operation.
Conclusion
Hex Socket Set Screws with Flat Point, as high-precision and easy-to-operate fasteners, play a significant role in mechanical manufacturing, electronic equipment, automotive industries, precision instruments, and furniture manufacturing. By following correct usage methods and precautions, the reliability and durability of these screws can be ensured, improving equipment operation efficiency and safety. It is hoped that this article will help readers better understand and use Hex Socket Set Screws with Flat Point.
