Nickel-plated Euro Standard 20-type ball nuts are specialized fasteners designed for industrial aluminum profiles. Their unique design and superior performance have made them widely used in modern industry. This article will provide a detailed introduction to their usage and application scenarios.
Usage of Nickel-Plated Euro Standard 20-Type Ball Nut
1. Preparation for Installation
Nickel-plated Euro Standard 20-type ball nuts are specifically designed for 20-series industrial aluminum profiles, typically used for connecting and securing aluminum profile frames. Before installation, it is essential to ensure that the groove of the aluminum profile is clean and free of debris, allowing the ball nut to be smoothly inserted.
2. Inserting the Nut

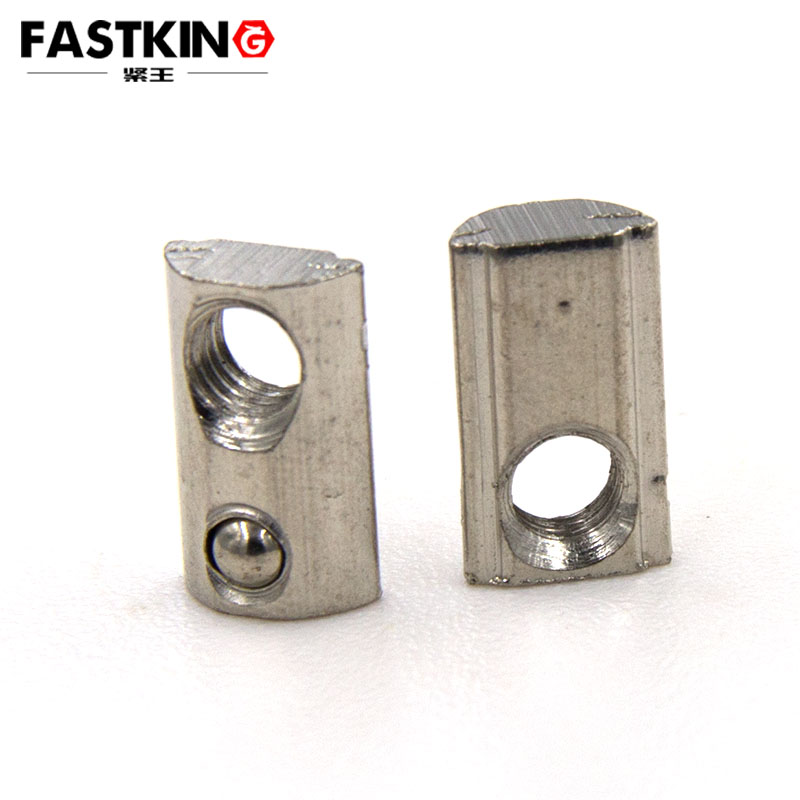

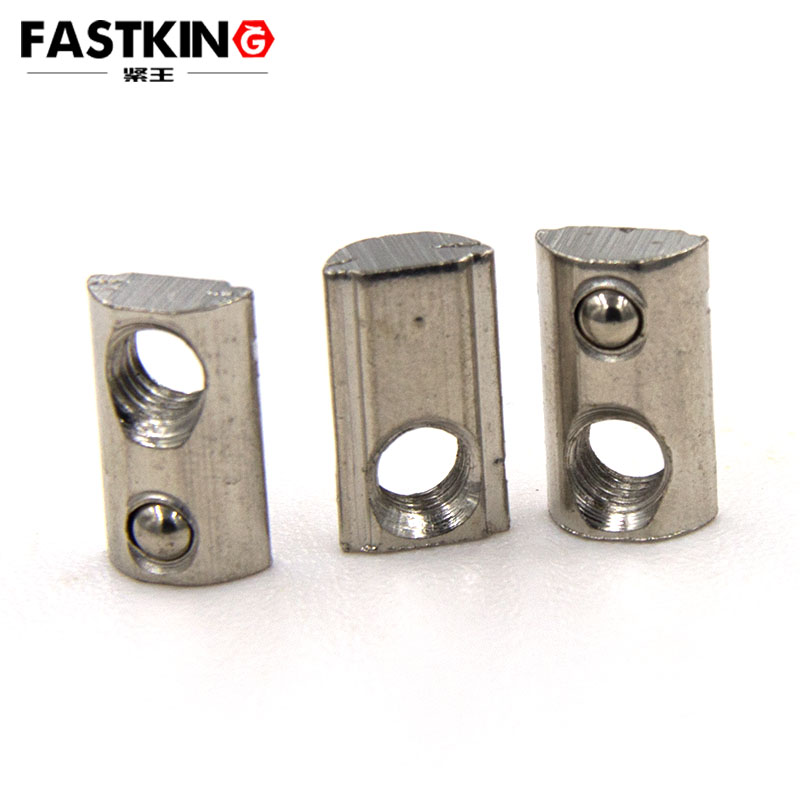

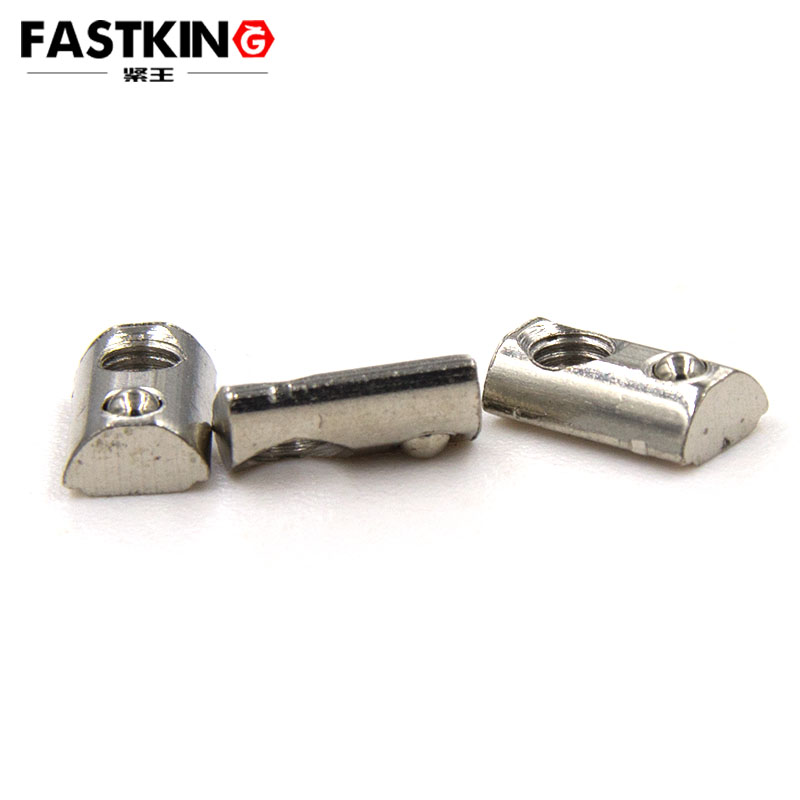

The back of the ball nut is designed with spring-loaded steel balls that can secure its position within the groove of the aluminum profile. During installation, align the nut with the groove of the aluminum profile and gently push it in until the steel balls lock into the groove, fixing the nut in place.
3. Connecting and Tightening
Insert a bolt into the ball nut and tighten it by rotating the nut or using a wrench. This design not only enhances the stability of the connection but also effectively prevents the bolt from loosening.
4. Adjustment and Positioning
One of the notable features of the ball nut is its adjustability. After the bolt is inserted, the nut can slide along the groove, allowing for quick positioning and adjustment. This flexibility makes the assembly of aluminum profiles more convenient, eliminating the need for complex tools or additional fixing devices.
5. Disassembly and Reuse
For disassembly, simply loosen the bolt and remove it, and the ball nut can be taken out of the groove. Thanks to its simple and durable design, the ball nut can be reused multiple times, reducing maintenance costs.
Application Scenarios of Nickel-Plated Euro Standard 20-Type Ball Nut
1. Automation Equipment Frameworks
In the manufacturing of automation equipment, nickel-plated Euro Standard 20-type ball nuts are commonly used to build equipment frames. Their high strength and corrosion resistance meet the load-bearing requirements of the equipment while simplifying the installation and maintenance process. For example, a well-known automation equipment manufacturer used aluminum profiles and ball nuts to build equipment frames that are not only stable and lightweight but also reduced the overall weight.
2. Assembly Lines and Workbenches
Nickel-plated Euro Standard 20-type ball nuts are widely used in the assembly of assembly line workbenches. Their quick adjustment and positioning functions allow workbenches to be flexibly adjusted according to different production needs. For example, in the cleanrooms of electronics factories, workbenches built with 20-series aluminum profiles and ball nuts not only have good load-bearing performance but are also easy to clean and maintain.
3. Workshop Safety Barriers
In the construction of workshop safety barriers, ball nuts are used to secure guardrails and aluminum profile frames. Their reliable connection performance ensures the stability of the barriers, protecting the safety of equipment and personnel.
4. Solar Photovoltaic Mounts
With the development of renewable energy, nickel-plated Euro Standard 20-type ball nuts have also been used in the assembly of solar photovoltaic mounts. The lightweight nature of aluminum profiles and the quick installation characteristics of ball nuts make the assembly of photovoltaic mounts more efficient.
5. Other Applications
In addition to the above scenarios, nickel-plated Euro Standard 20-type ball nuts are also widely used in the assembly of clean rooms, partition fences, and maintenance platforms for ladders. Their superior performance and flexible installation methods make them an ideal choice for connecting industrial aluminum profiles.
Conclusion
Nickel-plated Euro Standard 20-type ball nuts play a vital role in the connection of industrial aluminum profiles with their simple, efficient, and reliable characteristics. Whether in automation equipment frames, assembly line workbenches, or workshop safety barriers, they provide stable connections and flexible adjustment capabilities. With the development of industrial automation and lightweight trends, the application prospects of nickel-plated Euro Standard 20-type ball nuts will become even broader.
