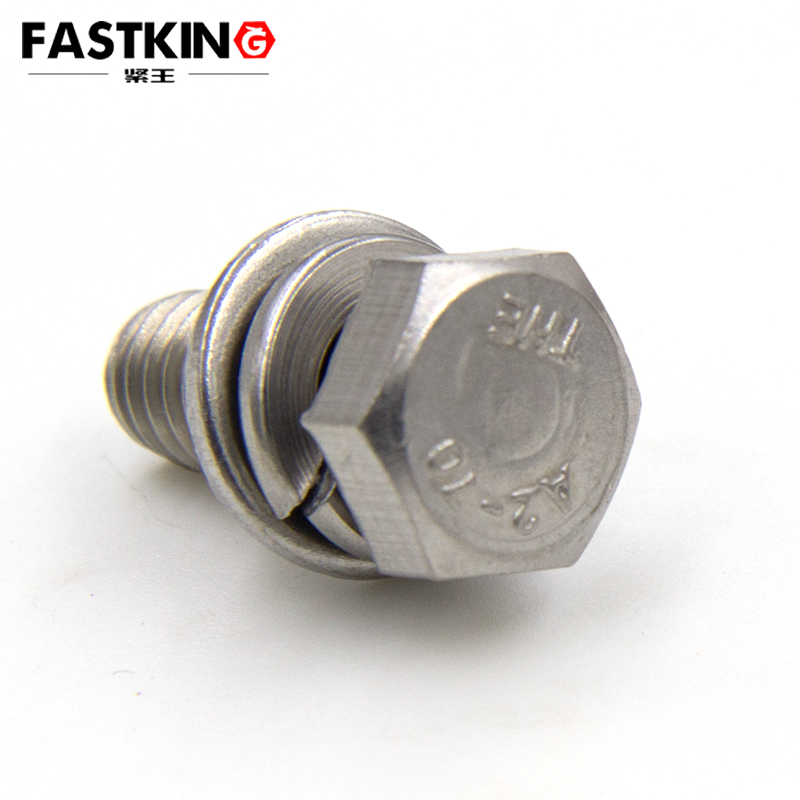

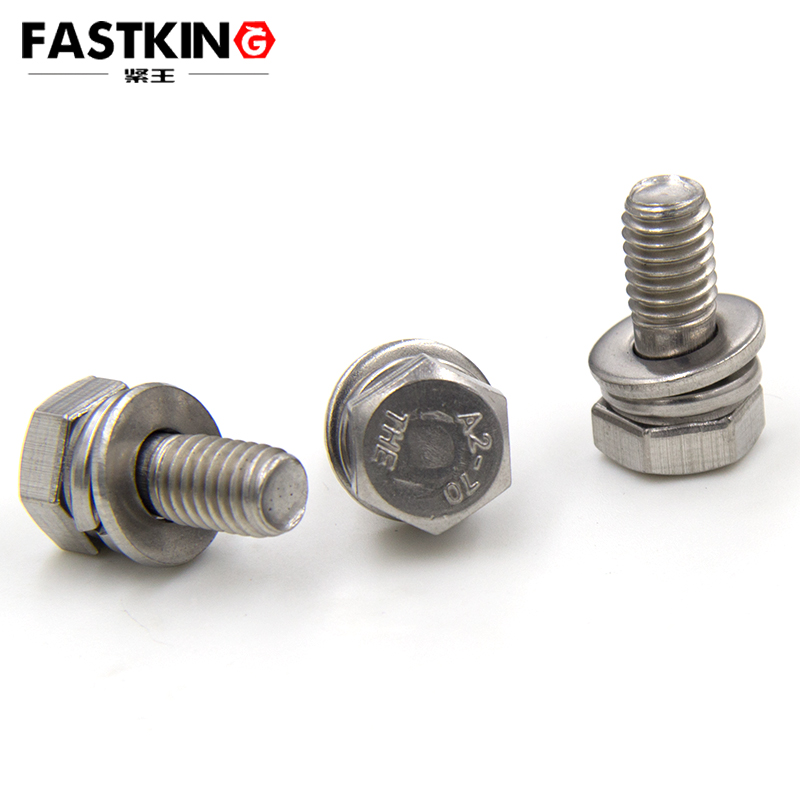

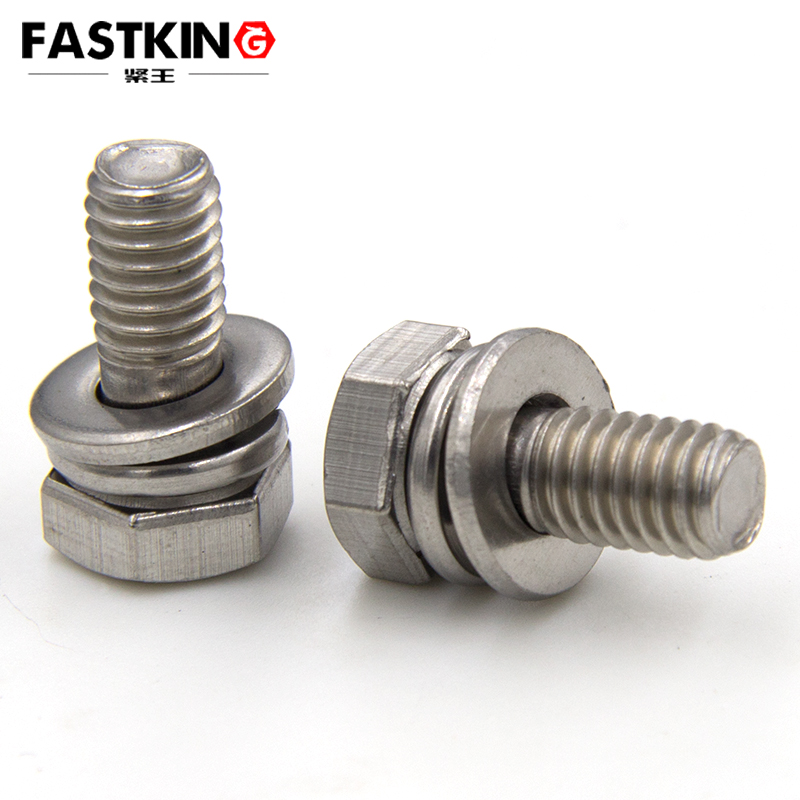

Characteristics of the Hex Bolt, Flat Washer, and Spring Washer Combination
The main characteristics of this fastener combination are as follows:
1. Convenient Installation: The flat washer and spring washer are pre-assembled on the bolt, reducing the number of steps required during installation and improving assembly efficiency.
2. Strong Anti-loosening Performance: The spring washer provides elastic tension, effectively preventing the bolt from loosening in vibrating or impact environments.
3. Broad Applicability: Suitable for various materials and strength grades, including carbon steel and stainless steel.
4. Standardized Design: Compliant with the national standard GB 9074.17, ensuring product quality and compatibility.
Usage Methods
Preparation
Before using the hex bolt, flat washer, and spring washer combination, the following tools and materials should be prepared:
1. Hex bolt, flat washer, and spring washer combination (select the appropriate size and material based on actual requirements).
2. Adjustable wrench or socket wrench (for tightening the bolt).
3. Components to be connected (such as metal plates, mechanical parts, etc.).
Installation Steps
1. Clean the Installation Surface: Ensure that the surface of the component to be connected is clean, flat, and free from oil, dust, or other impurities to guarantee the reliability of the connection.
2. Align the Bolt Hole: Align the threaded part of the hex bolt with the bolt hole of the component, ensuring that the bolt can be smoothly screwed in.
3. Tighten the Bolt: Use a wrench to uniformly apply force and tighten the bolt until the spring washer deforms elastically and tightly adheres to the surface of the component.
4. Check the Connection: After tightening, check whether the bolt is securely fastened and ensure that there is no looseness between the connected components.
Precautions
1. Select the Appropriate Size and Material: Choose the bolt size and material based on the strength requirements and usage environment of the connected components. For example, carbon steel is suitable for general strength requirements, while stainless steel is ideal for corrosive environments.
2. Avoid Over-tightening: Over-tightening may damage the bolt or washer, affecting the anti-loosening performance.
3. Check the Washer's Free Rotation: For a qualified assembly, the washer should be able to rotate freely without falling off.
Applications
Mechanical Manufacturing
In mechanical manufacturing, the hex bolt, flat washer, and spring washer combination is commonly used to fix mechanical components, such as motor bases and gearbox housings. Its anti-loosening performance effectively addresses vibrations during mechanical operation, ensuring stable connections between parts.
Automotive Industry
In automotive manufacturing, this assembly is widely used to fix body components, such as engine mounts and door hinges. Its high strength and anti-loosening characteristics meet the high reliability requirements of vehicles during operation.
Construction Industry
In the construction sector, the hex bolt, flat washer, and spring washer combination can be used to fix steel structure components and curtain wall frames. Its standardized design and high strength make it an ideal choice for construction fastening.
Electronic Equipment
In the assembly of electronic devices, this combination can be used to fix enclosures, brackets, and other components. Its compact size and reliable anti-loosening performance meet the high requirements for fasteners in electronic devices.
IV. Conclusion
The hex bolt, flat washer, and spring washer combination is an efficient and reliable fastener assembly, widely used in various industrial and civilian fields. By following proper installation steps and precautions, its anti-loosening and pressure-distributing characteristics can be fully utilized to ensure stable and reliable connections. When selecting this assembly, choose the appropriate size and material based on the specific application scenario to achieve the best performance.
