Introduction

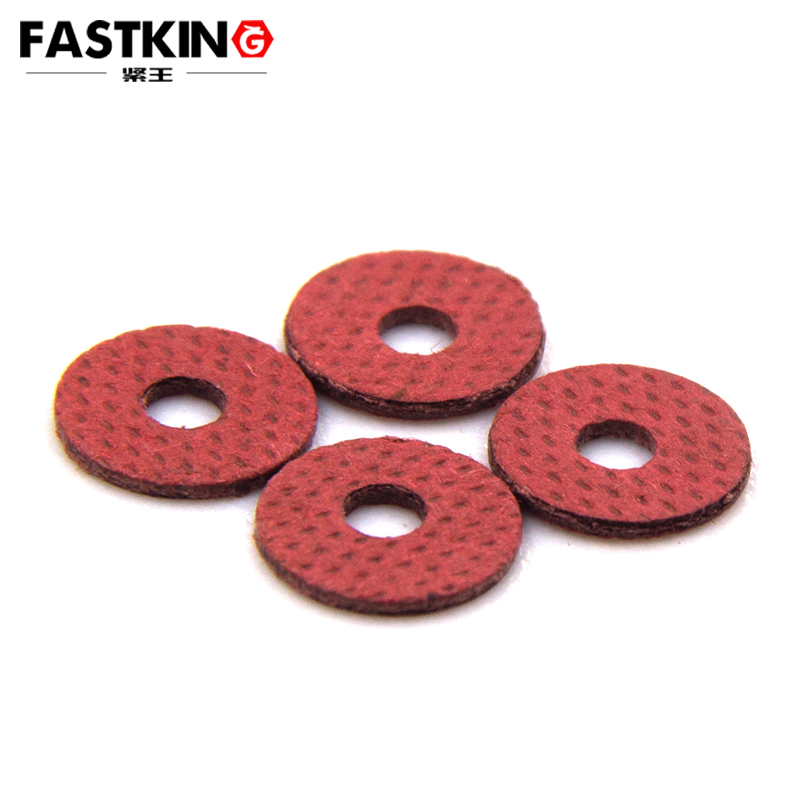

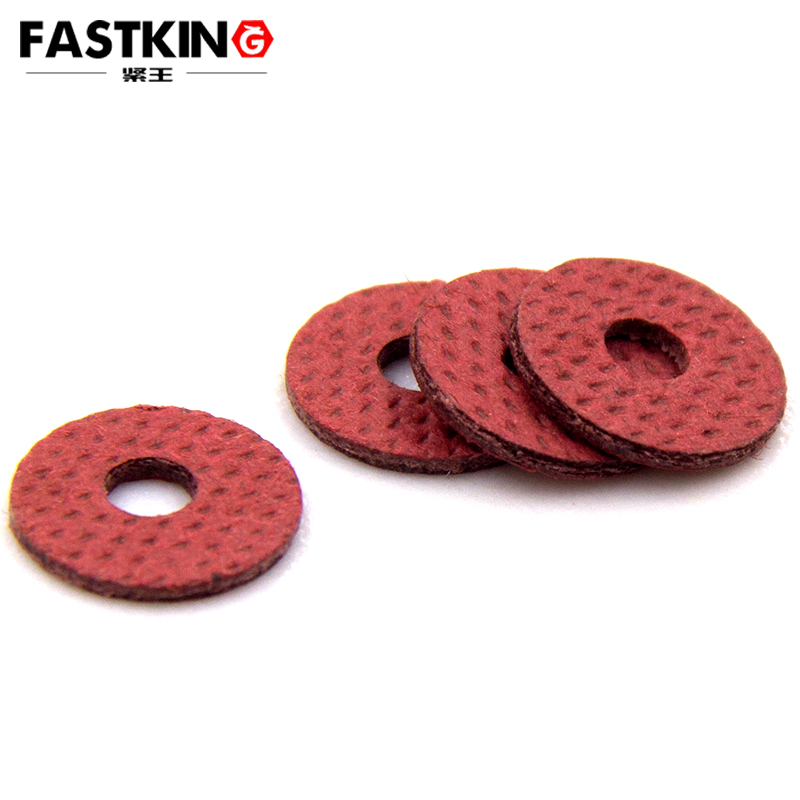

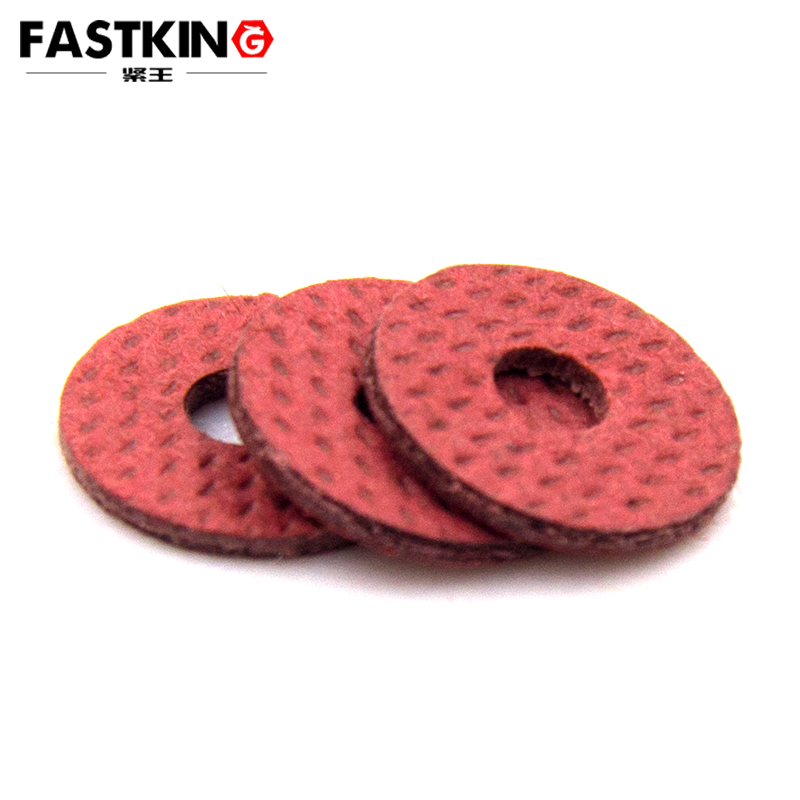

Red Steel Paper Insulating Flat Washers are versatile insulating materials widely used in electrical, mechanical, and electronic industries. Combining excellent electrical insulation properties with mechanical strength, they are suitable for various scenarios requiring insulation and mechanical support. This article provides a comprehensive overview of the application scenarios, product features, and installation methods of Red Steel Paper Insulating Flat Washers.
Product Features of Red Steel Paper Insulating Flat Washers
Electrical Insulation
Red Steel Paper Insulating Flat Washers offer high electrical insulation properties, effectively preventing electrical leakage and ensuring the safe operation of equipment.
They typically have an insulation grade of Class B (130°C), meeting the insulation requirements of most electrical devices.
Mechanical Strength
These washers possess high mechanical strength and elasticity, capable of withstanding mechanical stress.
They perform well in processing, allowing for cutting, drilling, and stamping without delamination or breakage.
Chemical Resistance
Red Steel Paper Insulating Flat Washers exhibit good resistance to acids and alkalis, making them suitable for various chemical environments.
High-Temperature Resistance
They maintain stability in high-temperature environments, with a heat resistance up to 130°C or higher.
Environmental Friendliness
Compliant with RoHS and other environmental standards, these washers are non-toxic, odorless, and biodegradable.
Application Scenarios
Electrical Equipment
Red Steel Paper Insulating Flat Washers are extensively used in electrical devices for insulation and mechanical support, including:
Motors: Used for insulation between motor windings, slot insulation, and layer-to-layer insulation.
Transformers: Employed as insulating gaskets to prevent electrical short circuits between high- and low-voltage windings.
Mechanical Industry
In mechanical manufacturing, these washers are used for:
Insulation of Mechanical Components: Preventing electrical arcing between mechanical parts.
High-Temperature Sealing: Used as gaskets in high-temperature environments to prevent fluid leakage.
Electronics
Red Steel Paper Insulating Flat Washers are also widely used in electronic devices, such as:
Insulation of Electronic Components: Used in circuit boards, switches, and electronic components.
Home Appliances: Ensuring safety in insulating parts of household appliances.
Automotive and Aerospace
Automotive Components: Used for insulation and sealing in engines, transmissions, and other parts.
Aerospace: Utilized in the electrical systems of aircraft and spacecraft to ensure reliability under extreme conditions.
Usage Methods
Pre-Installation Preparation
Select the Right Specification
Choose the appropriate size and thickness based on the application. The thickness range of Red Steel Paper Insulating Flat Washers is typically 0.5mm to 2.0mm.
Ensure the washer's inner and outer diameters match the bolts or holes in the equipment.
Clean the Surface
Clean the installation surface of the equipment to remove dust, oil, or other contaminants before installation.
Installation Steps
Positioning
Place the Red Steel Paper Insulating Flat Washer between the components that require insulation, ensuring accurate positioning.
Tightening
Use the appropriate tools (such as wrenches or screwdrivers) to tighten the bolts or nuts evenly, ensuring the washer is uniformly stressed.
Avoid overtightening to prevent damage to the washer.
Post-Installation Inspection
Check Tightening
After installation, inspect the bolts and washers to ensure they are securely fastened and free from loosening.
Test Insulation
Use an insulation tester to verify the washer's insulation properties, ensuring they meet the required standards.
Important Considerations
Environmental Adaptability
While Red Steel Paper Insulating Flat Washers are suitable for various environments, in extreme conditions (such as high humidity or corrosive environments), it is recommended to select higher-grade insulating materials.
Regular Maintenance
Periodically inspect the wear of the washers and replace any damaged ones promptly.
Safety Operations
Ensure compliance with safety protocols during installation and maintenance to prevent electrical short circuits or mechanical damage.
Conclusion
Red Steel Paper Insulating Flat Washers are high-performance insulating materials widely used in electrical, mechanical, electronic, automotive, and aerospace industries. By selecting the appropriate specifications, following proper installation methods, and conducting regular maintenance, these washers can effectively ensure the insulation and mechanical stability of equipment, extending its service life. This article aims to help users better understand and utilize Red Steel Paper Insulating Flat Washers for their applications.
